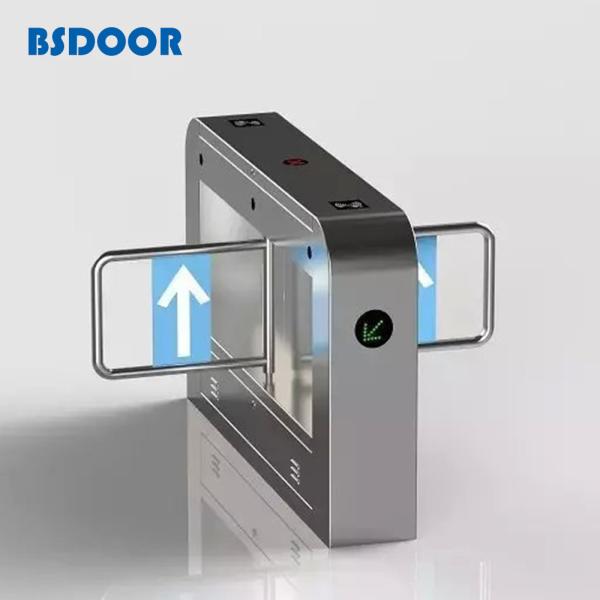

Movement Concealed Pedestrians Train Station Turnstile Anti Collision

Foshan Bester Access Control Smart Equipment Co.,Ltd

Movement Concealed Pedestrians Train Station Turnstile Anti Collision

  • 1
  • 2

Brand Name : Bester

Model Number : BS-BZ100

Certification : CE,RoHs

Place of Origin : China

MOQ : 1 pc

Price : Negotiated

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 5000pcs/month

Delivery Time : 3 days

Packaging Details : carton box or wooden case or wooden frmae

Communication Connection : RS485 Communication(full automatic)

Swing Door : Stainless Steel or Plexiglass

Protection Function : Electromechanical Anti-Collision

Control panel : one for one

Drive motor : DC 24V brushless motor, low noise

Opening signal : dry contact signal

Contact Now

Anti Collision Movement Concealed Pedestrians Train Station Turnstile

Newly Designed Anti-Collision Movement Concealed Pedestrians Swing Turnstile Barrier Gate

Introduction:

Swing turnstile gate is an intelligent channel device, which can easily integrate IC card, ID card, two-dimensional code, fingerprint, face and other recognition devices, and can realize the intelligent and efficient management of the channel; adopts bridge-type high-end arc design appearance Exquisite and generous, it is mainly used for the management of the entrance and exit of the passage. It has the characteristics of safety, convenience, prevention of illegal entry and exit, and rapid control of free passage in emergency situations. It is widely used in commercial complexes, residential quarters, enterprises and institutions, factories, scenic spots, transportation hubs and other occasions where intelligent management of channels is required.

Function


1. With fault self-checking and alarm prompt function, it is convenient for users to maintain and use;

2. Two-way card swiping, card entry and swiping, door opening and other modes can be set;

3. Anti-shock function, the gate will be automatically locked when the gate opening signal is not received;

4. Illegal break-in and trailing sound and light alarm;

5. Infrared anti-pinch function, during the resetting process of the gate, the gate will automatically return to the open state when the infrared detects a person in the passage;

6. The swing arms can be adjusted at the same time (for double swing conditions);

7. It has an automatic reset function. After opening the gate, the swing gate will reset automatically when it is not passing within the specified time, and the waiting time is adjustable (the default time is 5S);

8. The unified standard external port can be connected with a variety of access control equipment, and can be remotely controlled and managed through the management computer.

9. Support multi-functional system customization and docking.

Technical Parameters

Power AC220C±10V, 50/60HZ;
Machine core Full Automatic/Semi-Automatic/Manual Resetting, three model available
Operating Temperature -45ºC-60ºC
Relative Humidity ≤95%, No Condensation
Passage Width ≤600mm
Passing Speed 35 persons/min
Mechanism Heavy duty solenoid
Input Connection +12V Level Signal or Pulse Wide>100ms DC12V pulse, Current>10Ma
Communication Connection RS485 Communication(full automatic)
Material Stainless steel 304,thickness is no less than 1.3mm
Communication Distance 1200M
Running life 5--8 Million(Continuous Opening and Closing Operation)
Protect level IP54
Size 1200*280*980(mm)
custom made as demand
Colour Stainless Steel Brushed / Powder Coating(Optional)
Operation Place Subway Station, Hoverport,Tourism Sports,Exhibition,
Swimming Hall,Residence Area, Enterprise's Entrance and
Exit Attendance,Gateway Guard,Charge Management,Special
Access Control

Enternal function

The flap turnstile system is provided with a standard electric interface and can easily integrates

the common 3rd party equipment with read/write facilities.

1.

access control system

2.

bar-code scanner

3.

Token /ID/IC card reader

4.

time & attendance system

5.

coin collector

6.

card collector

7.

consumption system

8.

ESD system and fare collection system

9.

biometric systems (fingerprint & face recognition)

Bester (Foshan Bester Access Control Smart Equipment Co.,Ltd) is the enterprise integrating intelligent machinery and electronic technology in road safety machines and pedestrian control turnstile gate.
Our main products are automatic road barriers,car paking system,sliding gate opener, swing gate opener,automatic turnstile gate,tripod turnstile gate,swing barrier gate,flap barrier gate,fast speed turnstile,full height turnstile gate,and all kinds of access control system,such as the rfid card,fingerprint,face recognition.
