304# Stainless Steel Fastlane Speed Gate Turnstile Optical Swing Barrier Turnstile
The fastlane turnstile combines slim line styling with one of the industries widest passages. It has clear, bi-directional swinging motorized barrier panels and a stylish, architectural design that enhances any access control installation. Its sleek design and smaller footprint makes it compatible with any upscale business or institutional environment.
The fastlane turnstile controls pedestrian access between public and secure areas. The fastlane turnstile system is provided with a standard electric interface and can easily integrates the common 3rd party equipment with read/write facilities, such as access control system, time & attendance system, consumption system, ESD system and fare collection system, biometric systems (fingerprint & face recognition), bar-code scanner, Token/ID/IC card reader, coin collector and card collector, etc.
All-around Personal Safety Protection
The turnstile opens automatically to evacuate people in the event of an emergency, such as fire, power
failure, etc.
Infrared and mechanical anti-clamping functions provide double protection.
The gate can be pushed slowly when a sudden impact force is applied beyond the safety range so as to protect the
machine and the pedestrian effectively.
All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current
protective device to effectively avoid electric shocks.
STANDARD FEATURES & FUNCTIONS:
-
The fastlane turnstile system can easily integrates with the 3rd party equipment, such as Biometric systems, consumption systems, ESD system and access control system, etc.
-
Operation model: Both directions can be set as controlled mode or free mode, two or one direction can be controlled by switch-button or access controller.
-
Automatic check fault and alarm prompt function: to convenient for users to maintain.
-
The running status of device can be set up through pressing the built-in small keyboard of the main control board.
-
The device is locked until a valid open signal is received.
-
Infrared detection sensors: The device uses several infrared sensors transmitter and receiver type. The sensors are positioned at two different heights to defend against people trying to roll/crawl through the lane without being detected. The sensors are positioned at approximately knee height and waist height. The sensors can detect abnormal access and turnstile system will stay locked.
-
Anti-pinch function: Auto-alarm will activate for unauthorized pedestrian movement and tailgating. The barrier uses several photo sensors to prevent turnstile closure on a person while inside the lane.
-
Reset automatically function: ① the gates can locked automatically when it be forcibly pushed 10 degrees. ② “Go” signal will be cancelled if passage through is not completed within pre-set time. The standard default is 10 seconds (time adjustable 1s ~ 60s, by changing parameter of main control board).
-
Emergency-escape function: When power off, it will be opened the gates automatically to meet the request of fire protection. Also the gates will open by pressing the emergency button which can be remote-controlled whether the power is on or not. (Optional).
-
LED indicator function: Traffic lights on both sides of the turnstile barrier are the indicator of access status, When the traffic lights show green, it means to pass and the red light means no-entry. The traffic lights on both sides can be set to indicate access for left or right or bi-direction.
-
Remote control and management function: Through the management computer to realize remote control and management.
-
Streamline small footprint design that utilizes shared cabinets for multi-lane applications.
-
Smooth operating motorized barriers, the entire system runs smoothly, with a small noise and free of mechanical impact.
-
Extremely fast throughputs.
SPECIFICATIONS:
| Framework | 304# Stainless Steel (default), 201# or 316# Stainless Steel or paint (optional) |
| Thickness of ply | 1.7mm |
| Finish | brushed surface, polishing surface |
| Shell's size (L*W*H) | 1400mm*150mm *990mm (default) |
| Swing arm material | Tempered glass or Acrylic (optional) |
| Stretching out swing length | 260mm~600mm |
| The inductive card reader dimension | equipped with the standard mounting brackets or tailor. |
| Machine center | Germany technological motor |
| Power voltage | AC220V±10%, 50Hz±10% |
| Driver motor | DC36 servo motor |
| Main-board voltage | 12V DC |
| In-built Infrared | 6 pairs/passageway |
| Passing speed in normally open mode | 50 persons/min |
| Passing speed in normally closed mode | 40 persons/min |
| Passage Width | 600mm |
| Swing arm transmission angle | 180° |
| Swinging direction | unidirectional or bi-directional |
| Opening / closing time | 0.1 seconds |
| The time required to running state after power on | 3 seconds |
| Automatic reset time after the failure | 1 seconds |
| Mean time to failure | min. 5 000 000 |
| Operation temperature | -10℃ ~ +70℃ |
| Relative humidity | less than 95% not condensed |
| Working Environment | Indoor/Outdoor (with rain-tent cover) |
| Input port | relay dry contact signal; +12V level signal, pulse width >100ms, DC12V pulse signal |
| Communications port | RS232/ RS485 electric standard, communications range ≤1200m. Available to connect with external CAN BUS and Ethernet |
Application areas:
Office space: business buildings, government agencies (prisons, detention centers), etc.
Science and education units: institutions of higher learning, research institutes, kindergartens, libraries, etc.
Commercial service places: supermarkets, business buildings, hotels, banks, concert halls, convention centers, etc.
Leisure and entertainment venues: stadiums, parks, scenic spots, playgrounds, leisure clubs, etc.
Transportation site: bus station, railway station, high-speed rail station, subway station, ferry port, airport, etc.
Product Tags:
|
|

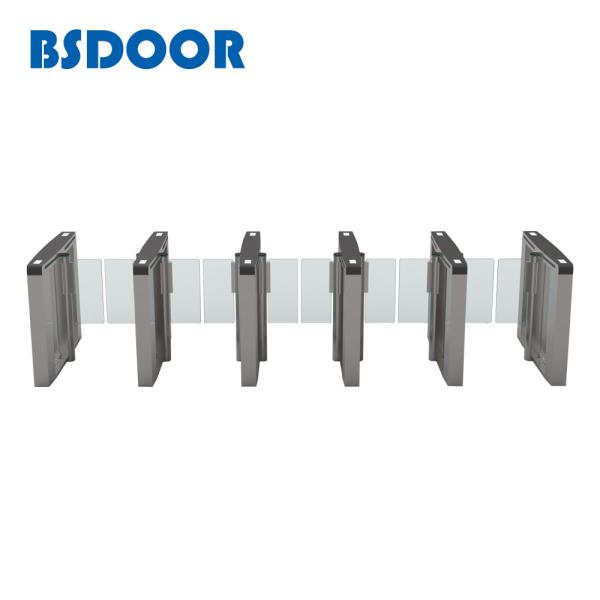

304 Stainless Steel Fastlane Speed Gate Turnstile Optical Swing Barrier Images
|
